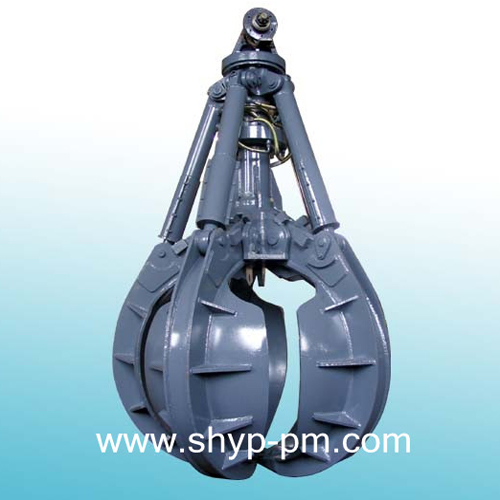

Hydraulic Orange Peel Grab equipped with excavator

Short Description:

Hydraulic Orange Grab is an efficient tool for loading and unloading steel scraps ore and clinker.


Product Detail

FAQ

Product Tags

2-141205161514V5



Hydraulic Orange Grab is an efficient tool for loading and unloading steel scraps, ore and clinke. The grab make use of exterior hydraulic system to complete grab opening or closing, and the bolted joint is imported from Germany, so it has high performance. The peels of the grab are particular, so it easy to grab block material. The grab has four or six peels, and each peel is driven by an oil cylinder, so the material won’t leak.

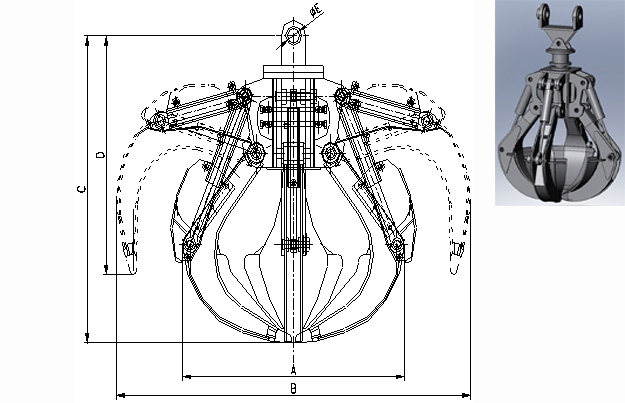

Type and Size Volumem3 Dimensions   mm Dead Weight
 kg
Number of shells OperatingPressure Kg/cm2  SWL
kg
A B C D E
YD2[0.3] 0.3 1290 1960 1580 1410 70 1060 4 250 2000
YD3[0.4] 0.4 1430 2270 1680 1460 70 1150 4 250 3000
YD4[0.5] 0.5 1680 2400 1900 1620 70 1550 4 250 4000
YD6[0.8] 0.8 1890 2700 2060 1710 70 1700 6 250 6000
YD7[1.0] 1.0 1940 3120 2880 2490 100 3400 6 250 7000
YD8[1.6] 1.6 2140 3390 3090 2620 100 3550 6 250 8000
YD9[2.0] 2.0 2280 3620 3210 2880 100 3650 6 250 9000
