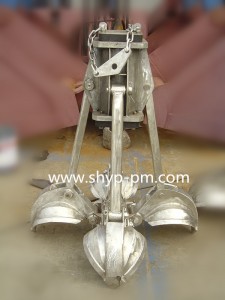

Pneumatic orange peel grab

Short Description:

Pneumatic orange peel grab could load cargo under any severe circumstances such as in corrosive water.


Product Detail

FAQ

Product Tags

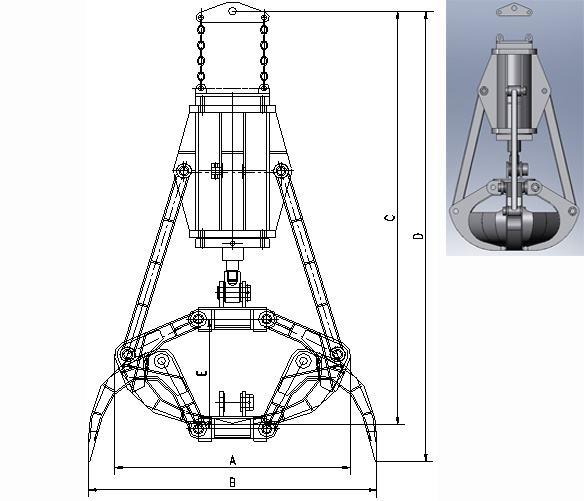

2-1412041A554H8



Pneumatic orange peel grab could load cargo under any severe circumstances, such as in corrosive water. This kind of grab could be opened and closed by making use of air pump. At present, the pneumatic stainless steel grab is widely used in pulp mill, brewery, chemical plant and so on.
Material density:Corrosive materials such as distillers’ grain, paper pulp and so on.

Type and Size SWL
t
Volume
m3
Dead
Weight
t
Dimensions (mm) Operating
Pressure (MPa)
A B C D E
QD1[0.05]0.23 1 0.05 0.23 680 1060 1389 1435 316 0.6
QD1[0.06]0.28 1 0.06 0.28 800 1000 1398 1900 391 0.6
QD1[0.08]0.35 1 0.08 0.35 900 1100 1644 1790 436 0.6
QD2[0.2]0.7 2 0.2 0.7 1200 1700 2330 2505 657 0.6
